Understanding Voltage Drop in Solar Panels

So, you've gone solar! Congratulations! You're harnessing the power of the sun, saving money, and helping the planet. But like any electrical system, your solar panel setup isn't perfect. One thing you'll want to keep an eye on is voltage drop. Think of it like this: you're trying to fill a swimming pool with a garden hose. The longer the hose, the less water pressure you get at the end, right? That's voltage drop in a nutshell. It's the decrease in voltage as electricity travels through the wires in your solar system.

Why should you care? Because too much voltage drop means your system isn't operating at its peak efficiency. You're losing power — and money! — along the way. We want to minimize that as much as possible. The good news is, a little voltage drop is normal and expected. The key is keeping it within acceptable limits.

1. What Causes Voltage Drop in a Solar Panel System?

Alright, let's dig a little deeper. What actually causes this voltage drop phenomenon? Well, a few factors are at play. Primarily, it comes down to the resistance of the wires themselves. Every wire has some level of resistance to the flow of electricity. Think of it like a tiny traffic jam happening inside the wire. The longer the wire and the thinner it is, the more resistance there will be, and the bigger the voltage drop will be.

Other things that can contribute to voltage drop include loose connections, corroded terminals, and even the type of wire you're using. Copper wire, for example, is a better conductor than aluminum wire, so it will have less voltage drop for the same length and thickness. Basically, anything that hinders the smooth flow of electrons is going to contribute to voltage drop.

It's also important to remember that the amount of current flowing through the wires affects voltage drop. The higher the current, the greater the voltage drop. So, a system that's producing a lot of power will naturally have a higher voltage drop than a system that's producing very little.

So, we have wire length, wire thickness, wire material, connection quality, and current as our main culprits. Keeping these in mind will help you choose the best components and installation practices for your solar system.

Understanding Solar Panel Voltage Drop Panels Network USA

Acceptable Voltage Drop

Okay, so we know voltage drop is inevitable. But how much is too much? What's the acceptable level we should be aiming for? Generally, the industry standard for acceptable voltage drop in a solar panel system is around 3% from the solar panels to the inverter, and another 2% from the inverter to the main service panel. That means a total of 5% is generally considered the upper limit. But strive for less if you can!

2. Why is the Acceptable Voltage Drop So Low?

You might be thinking, "5%? That doesn't sound like much!" And you're right, it isn't. But remember, even a small percentage of voltage drop can add up to a significant amount of lost power over the lifespan of your solar system. We're talking about years and years of potential energy production. Every little bit counts.

Consider also the impact on your electrical appliances. If you have excessive voltage drop, some appliances might not function correctly. Motors may run slower, lights may dim, and sensitive electronics may malfunction. Maintaining a low voltage drop ensures that all your electrical equipment receives the correct voltage, preventing damage and ensuring optimal performance.

Think of it as preventative maintenance. Addressing voltage drop early on can save you from costly repairs and inefficiencies down the road. It's a worthwhile investment to ensure your solar system is operating at its best.

So aiming for that 3% target from panels to inverter, and 2% from inverter to the main service panel is a sensible approach. It makes sure your solar panels are doing their job as well as they can!

24 Volt Dc Voltage Drop Calculator DamonLaighton

How to Calculate Voltage Drop

Alright, time for a little math. Don't worry, it's not rocket science! Calculating voltage drop can help you identify potential problems and make informed decisions about your solar system. There are several online voltage drop calculators that can do the heavy lifting for you. But if you want to understand the underlying principles, here's the basic formula:

Voltage Drop (VD) = (2 x Length x Current x Resistance) / 1000

3. Breaking Down the Voltage Drop Formula

Let's break that down, piece by piece:

Length: This is the length of the wire run, in feet. Remember to double it to account for the round trip (positive and negative wires).

Current: This is the current flowing through the wire, in amps. You can find this information on your solar panel or inverter specifications.

Resistance: This is the resistance of the wire per 1,000 feet. You can find this information in wire gauge charts or from the wire manufacturer.

Plug in the numbers, and you'll get the voltage drop in volts. Divide that by the original voltage and multiply by 100 to get the voltage drop as a percentage. See? Not so scary, is it?

Here's a quick example. Let's say you have a 50-foot wire run (so 100 feet total), a current of 10 amps, and a wire resistance of 2 ohms per 1,000 feet. The voltage drop would be (2 x 100 x 10 x 2) / 1000 = 4 volts. If your original voltage was 240 volts, the voltage drop percentage would be (4 / 240) x 100 = 1.67%. That's well within the acceptable range!

Of course, you don't have to do this calculation by hand every time. As I mentioned earlier, there are plenty of online calculators that can do the work for you. But understanding the formula will give you a better appreciation for the factors that influence voltage drop.

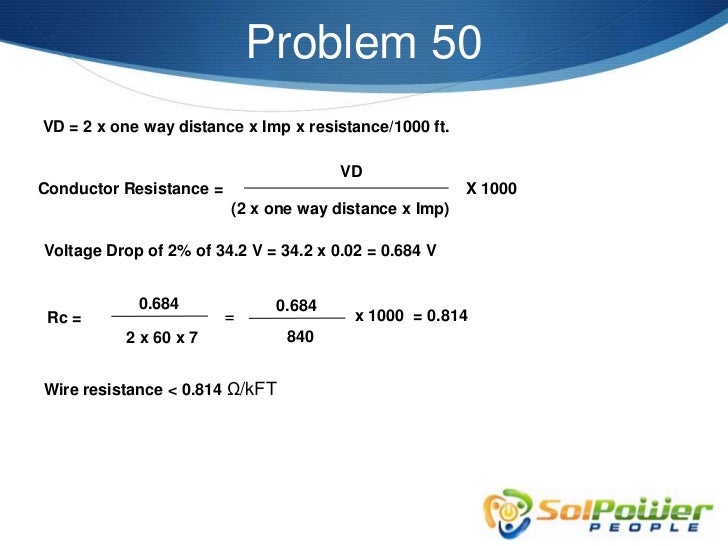

Solar Mooc Voltage Drop Calculations

Strategies to Minimize Voltage Drop

Now that we know what causes voltage drop and how to calculate it, let's talk about some practical steps you can take to minimize it. The goal is to create a smooth, efficient pathway for electricity to flow from your solar panels to your home.

4. Practical Tips for Voltage Drop Prevention

One of the most effective strategies is to use thicker wires. Remember, thicker wires have less resistance. So, upgrading to a larger wire gauge can significantly reduce voltage drop, especially for longer wire runs. Consult with a qualified electrician to determine the appropriate wire gauge for your specific setup.

Shortening the wire runs is another simple but effective strategy. The shorter the distance electricity has to travel, the less voltage drop there will be. Consider relocating your inverter closer to your solar panels, or your main service panel closer to your inverter. Of course, this isn't always possible, but it's worth considering if you're designing a new system or making significant modifications to an existing one.

Good connections are crucial. Make sure all your connections are clean, tight, and properly made. Loose or corroded connections can add significant resistance to the circuit, increasing voltage drop. Use appropriate connectors and tools, and consider using antioxidant compounds to prevent corrosion, especially in outdoor environments. Regular inspection and maintenance of your connections can also help prevent problems down the road.

Finally, consider the type of wire you're using. Copper wire is generally a better conductor than aluminum wire, so it will have less voltage drop for the same length and thickness. However, copper is also more expensive. Weigh the cost-benefit of using copper versus aluminum, and choose the option that best suits your needs and budget. Ultimately the best approach involves a combination of these strategies. By carefully planning your system and paying attention to these details, you can minimize voltage drop and ensure your solar panels are operating at peak efficiency.

Solar Panel Voltage Versus Time For November 8 Download Scientific

Troubleshooting Voltage Drop

Even with the best planning and installation, voltage drop problems can sometimes arise. So, how do you know if you have a voltage drop issue? And what can you do about it?

5. Spotting the Signs of Voltage Drop

One of the most obvious signs of voltage drop is poor performance from your electrical appliances. Lights may dim, motors may run slower, and sensitive electronics may malfunction. If you notice these symptoms, it's worth investigating the possibility of voltage drop. You may also experience lower-than-expected power output from your solar panels. This is difficult to see without some monitoring equipment.

Another telltale sign is overheating wires or connections. Excessive voltage drop can cause wires to heat up, which can be a fire hazard. If you notice any unusual heat coming from your wires or connections, turn off the system immediately and consult with a qualified electrician.

Of course, the most accurate way to diagnose voltage drop is to measure it directly using a multimeter. A qualified electrician can perform these measurements and identify the source of the problem. Regular system checkups will keep you informed, especially after severe weather events.

6. Addressing the Voltage Drop Problem

If you suspect you have a voltage drop problem, the first step is to inspect your wiring and connections. Look for loose connections, corroded terminals, and damaged wires. Tighten any loose connections, clean corroded terminals, and replace any damaged wires. If you're not comfortable working with electrical systems, it's best to call a qualified electrician.

If the problem isn't obvious, you may need to perform voltage drop calculations to identify the source of the issue. This can help you pinpoint specific sections of the wiring that are experiencing excessive voltage drop. If you find that the voltage drop is excessive due to long wire runs or undersized wires, you may need to upgrade to thicker wires or relocate your equipment.

Remember, safety first! Always turn off the power before working on any electrical system. And if you're not comfortable performing these tasks yourself, don't hesitate to call a qualified electrician. They have the knowledge, skills, and tools to diagnose and fix voltage drop problems safely and effectively.
