When Should You Reach for PWM in Your Projects?
2. The Versatility of PWM
So, when do you actually use PWM? Well, that's the million-dollar question! The answer is: in a surprisingly wide variety of applications. Think about anything where you need to control the power delivered to a device precisely. Thats usually a good candidate for PWM.

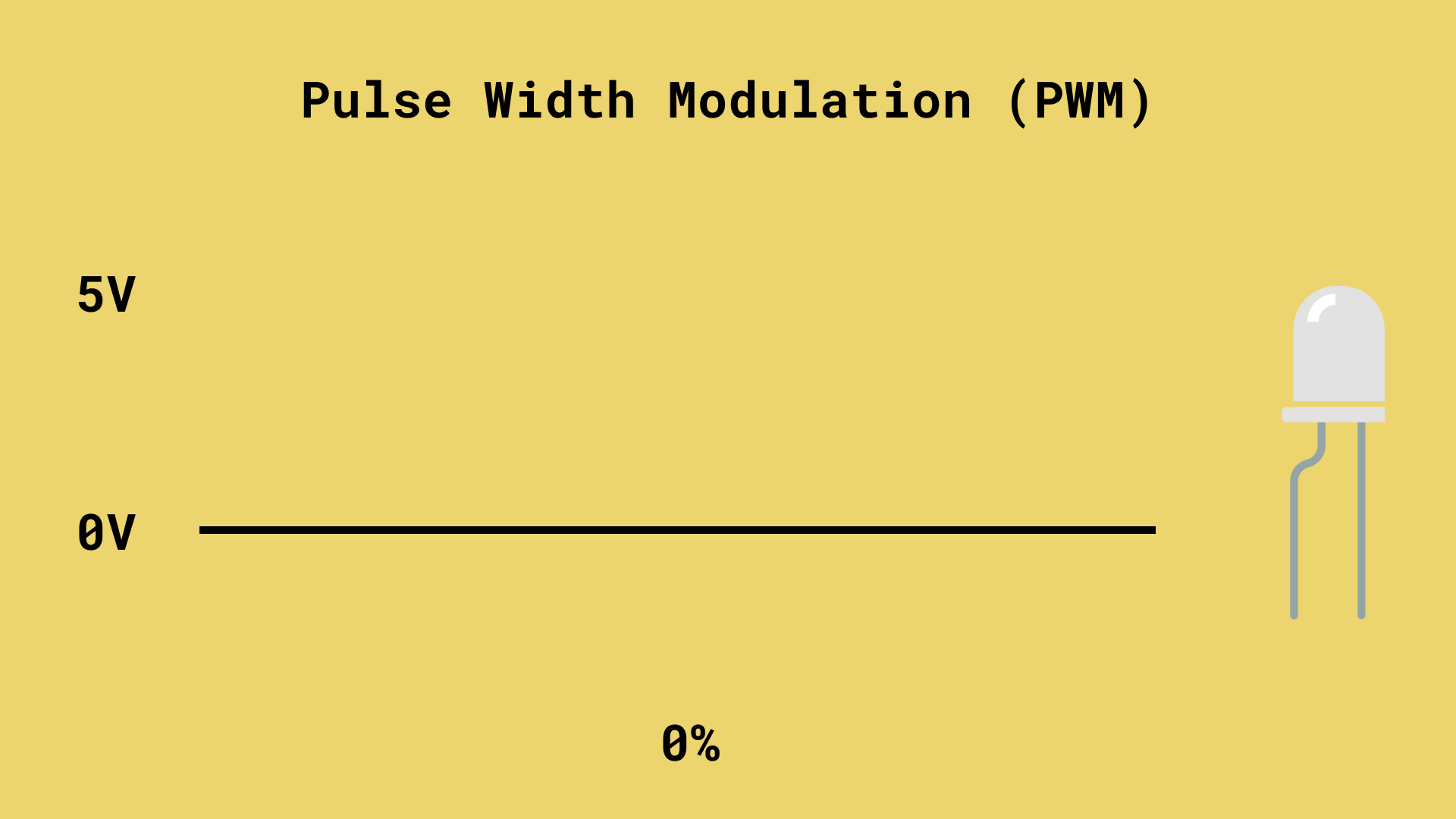

One of the most common applications is controlling the brightness of LEDs. Ever noticed how smoothly a smart lightbulb dims? That's PWM at work! By rapidly switching the LED on and off, and varying the duty cycle, you can create the illusion of continuous dimming without actually reducing the voltage. It's like a magician's trick, but with electricity.
Another popular use case is motor speed control. Instead of using complex circuitry to adjust the voltage going to a motor (which can be lossy), PWM can effectively regulate the average voltage applied. This is crucial in everything from robotics to electric vehicles to your everyday ceiling fan. You can get a precise control with more effiency.
PWM is also fantastic for controlling servo motors. Servos need precise positioning, and PWM provides a clean and efficient way to tell the servo where to go. The width of the pulse corresponds to the desired angle, allowing for accurate and repeatable movements. Think of robotic arms or camera gimbals PWM is often the brain behind the operation.
3. Dimming LEDs Like a Pro
Let's dive a little deeper into LED dimming. Imagine you're building a custom lighting system for your model train set (or, you know, maybe something more practical). Instead of using a potentiometer to manually adjust the voltage, PWM gives you a digital, easily controllable solution.
By connecting your LED to a microcontroller and programming it to output a PWM signal, you can create a smooth dimming effect. You can even automate the dimming process, creating sunrise/sunset simulations or custom lighting patterns. It's not just about brightness; it's about creating an atmosphere.
The key here is the frequency of the PWM signal. You want it to be fast enough that the human eye can't detect the flickering. Typically, frequencies above 100Hz are sufficient to create a smooth, continuous light output. If you use a lower frequency, you might see the LED visibly flicker, which is definitely not the desired effect. No one wants a disco train set unless they're specifically aiming for that.
Moreover, PWM allows for fine-grained control over the LED's brightness. Unlike analog dimming, which can be affected by variations in voltage or component tolerances, PWM provides a consistent and predictable dimming behavior. This is crucial for applications where accuracy and repeatability are important, such as medical lighting or scientific instrumentation.
